Thrombodynamics Analyser T2-F
Kat. № T2-F
Kat. № T2-F
Analyser T2-F, where «F» stands for «Fibrin generation registration»
Clotting starts from the localized coagulation activator and propagates in a thin layer of non-stirred blood plasma sample. The T2-F System analyses spatiotemporal dynamics of fibrin clot formation and calculates numerical parameters describing the coagulation process.
- Videos and images of growing fibrin clot

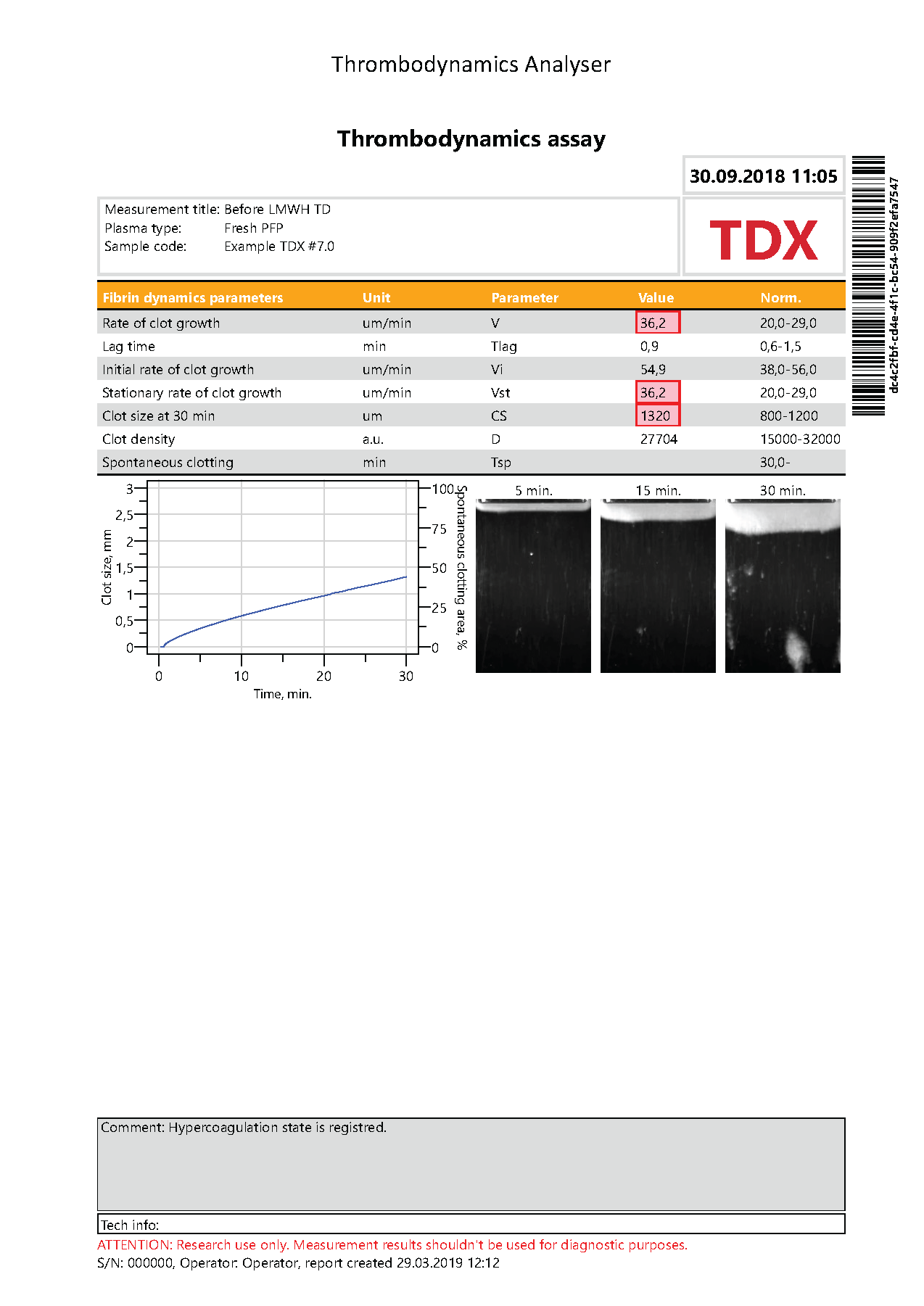

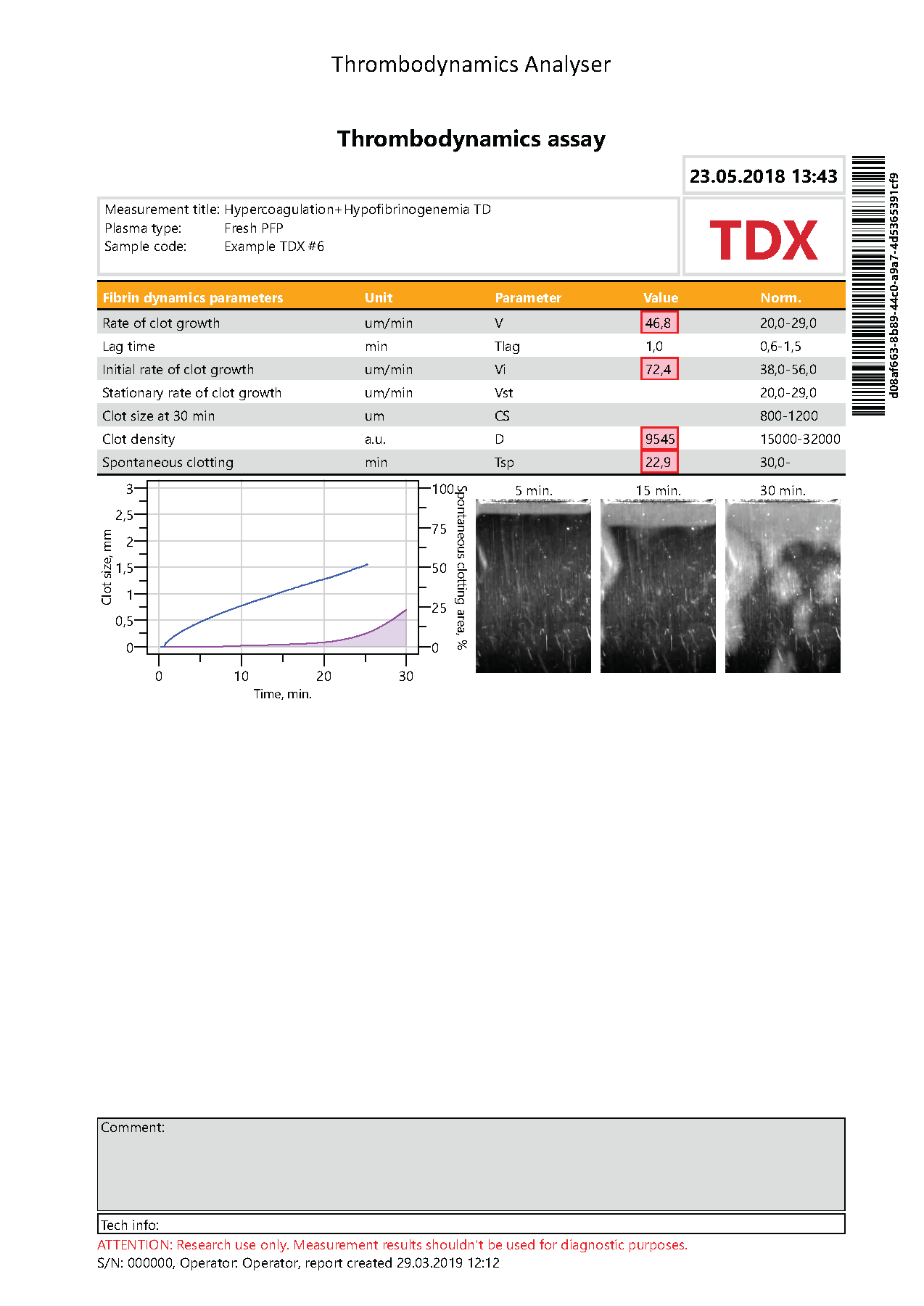

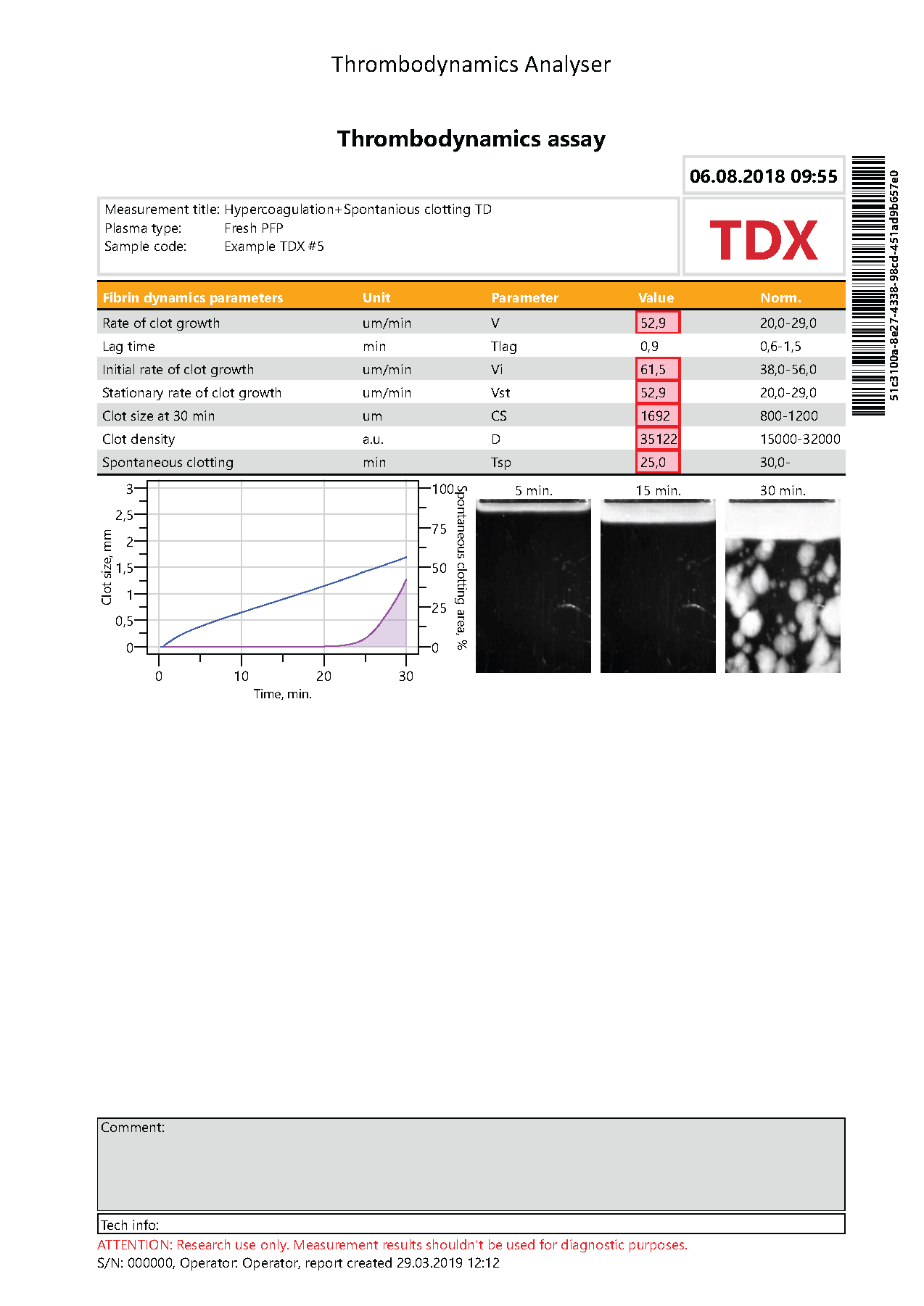

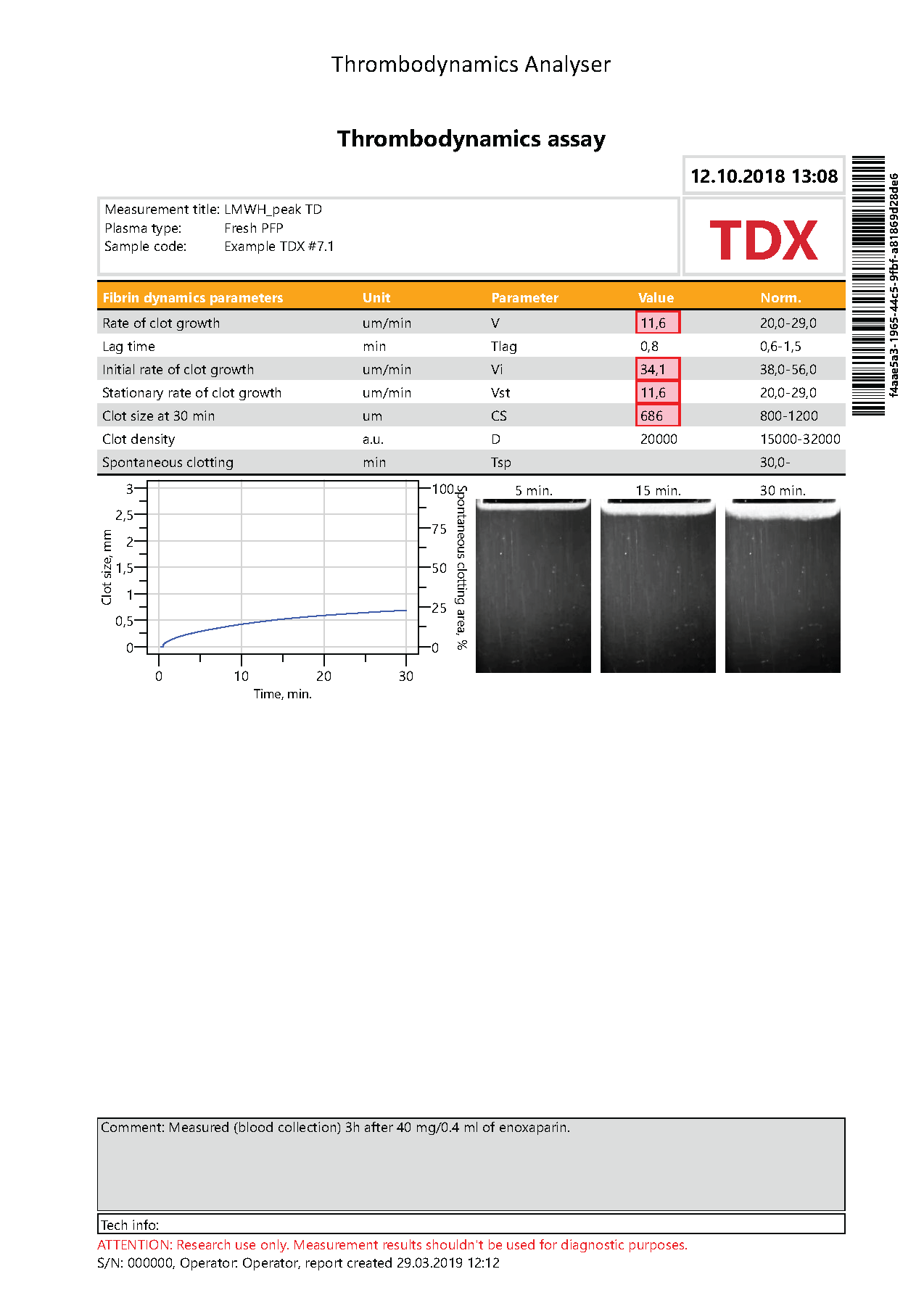

- Results of mathematical analysis of videos: calculated parameters of fibrin propagation, charts and curves (At the bottom of this page you can see an example)
All results are stored in software database. User can search, compare, print, export and import results of the measurements.
SPECIFICATION
Сonsumables
ADDITIONAL INFORMATION
Thrombodynamics Analyser System T2-F consists of:
Measurement type: Thrombodynamics (TD), Fibrinolysis
Measurement principle: Registration of ligth scattering signal from the growing fibrin clot
Measurement duration:
Temperature control: 30°C ±0.5°C to 45°C ±0.5°C for all channels simultaneously (0.5°C step)
- Thrombodynamics Analyser Device, Model T2-F
- Dimensions: 430x230x160 mm (device without notebook)
- Weight: 10 kg max (device without notebook)
- Power supply: 100 – 242 V AC, 50 – 60 Hz
- Power consumption: 230 VA max
- Sample volume: 0.12 ml
- Number of measuring channels: 2
- Number of preheated places: 4
- Personal Computer (Notebook) with Thrombodynamics Analytical Software installed
- Accessories and supplies:
- Mouse for notebook
- USB & LAN adapter
- Service kit
- User manual
Measurement type: Thrombodynamics (TD), Fibrinolysis
Measurement principle: Registration of ligth scattering signal from the growing fibrin clot
Measurement duration:
- 30 min for TD by default
- Max duration - 8 hours
Temperature control: 30°C ±0.5°C to 45°C ±0.5°C for all channels simultaneously (0.5°C step)
